Lifting platform for persons with impaired mobility PDS

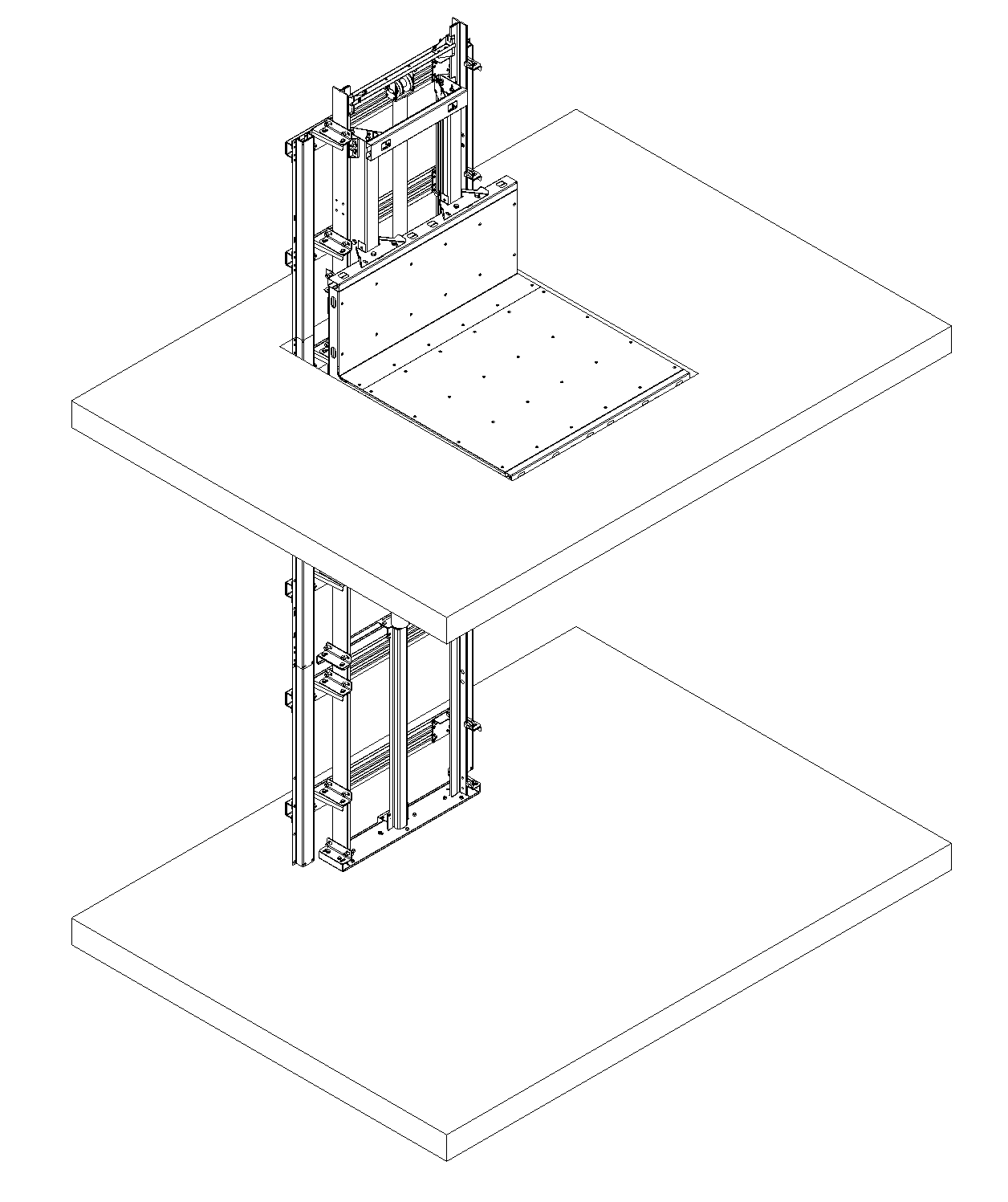

Lifting platforms for persons with impaired mobility PDS is the most economical way to get access to floors in a building. The lift has an open deck and one protection wall on the guide rails side. After the lift's elevation, the other walls inside the shaft must be plastered or plastered and painted the way it fits into each corridor, except that here the "corridor" is vertical, and we call it the lift shaft.

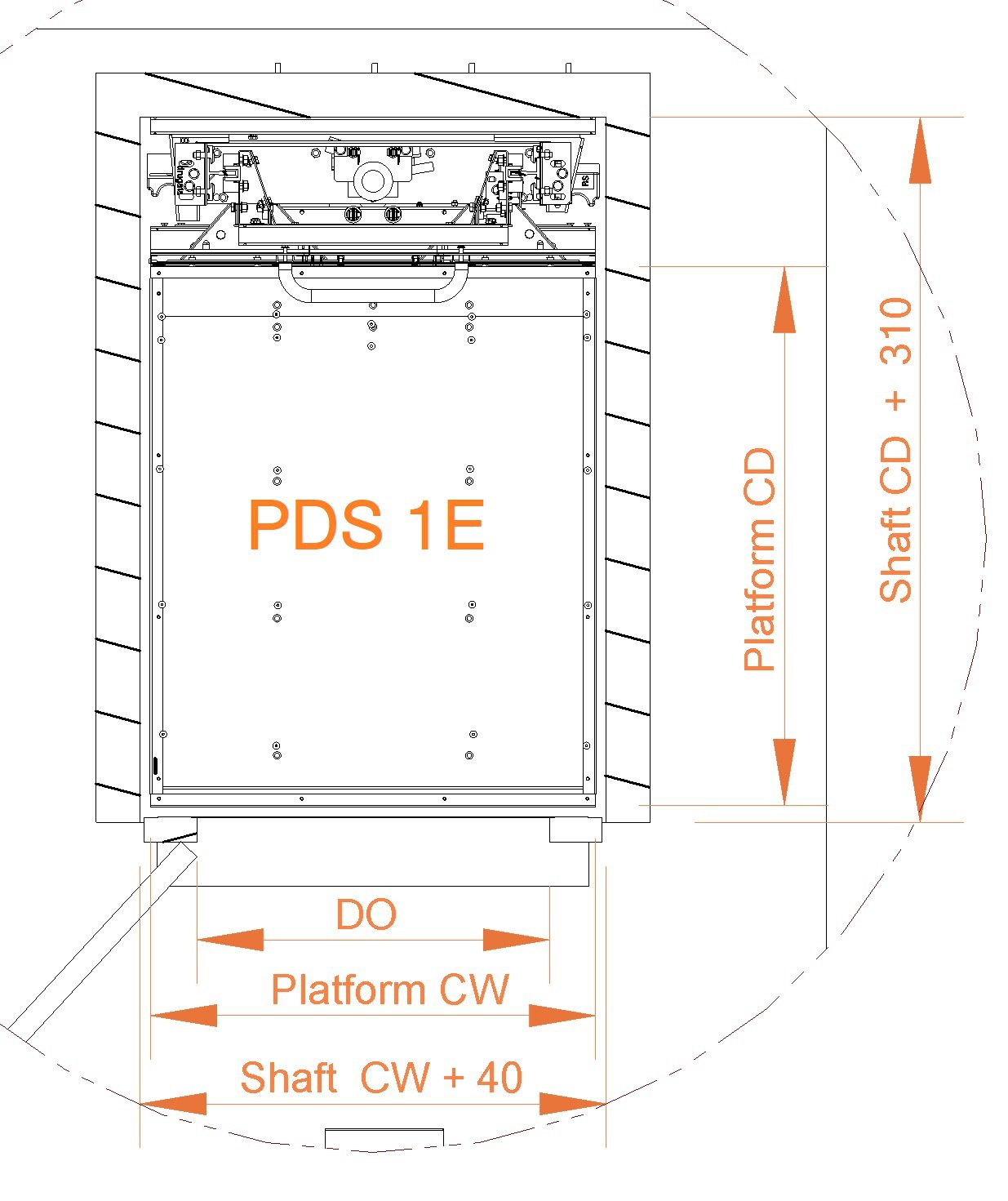

PDS 1E (1 Entrance) has one entrance and the guide rails in front form the entrance.
PDS 2E (2 Entrances) has two entrances, and the guide rails are left or right of the entrance.
PDS 3E (3 possible Entrances) is used for a 90-degree wheelchair turn inside the lift.

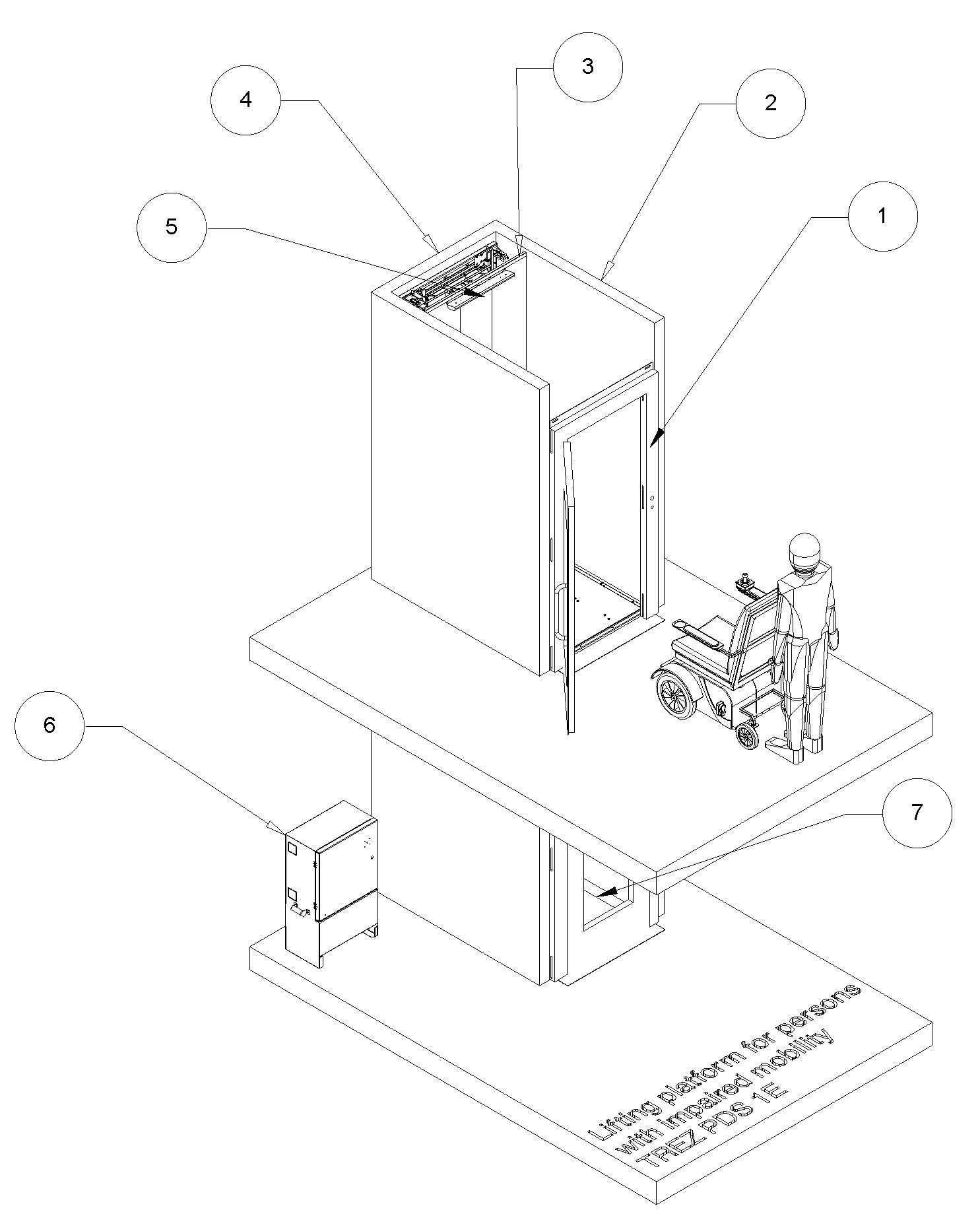

Legend: 1) Landing doors. 2) Lift construction shaft. 3) Protection wall. 4) Construction wall to anchor the guide rails. 5) Light. 6) Control and power cabinet. 7) Pit or ramp.

Model Load Platform size CW Platform size CD Travel Stops Add to cart
PDS 1E
${ errors['62397_62398'] }
${ errors['62397_62399'] }
${ errors['62397_62400'] }
${ errors['62397_62401'] }
${ errors['62397_62402'] }
PDS 2E
${ errors['62385_62386'] }
${ errors['62385_62387'] }
${ errors['62385_62388'] }
${ errors['62385_62389'] }
${ errors['62385_62390'] }
PDS 3E
${ errors['62391_62392'] }
${ errors['62391_62393'] }
${ errors['62391_62394'] }
${ errors['62391_62395'] }
${ errors['62391_62396'] }

Options

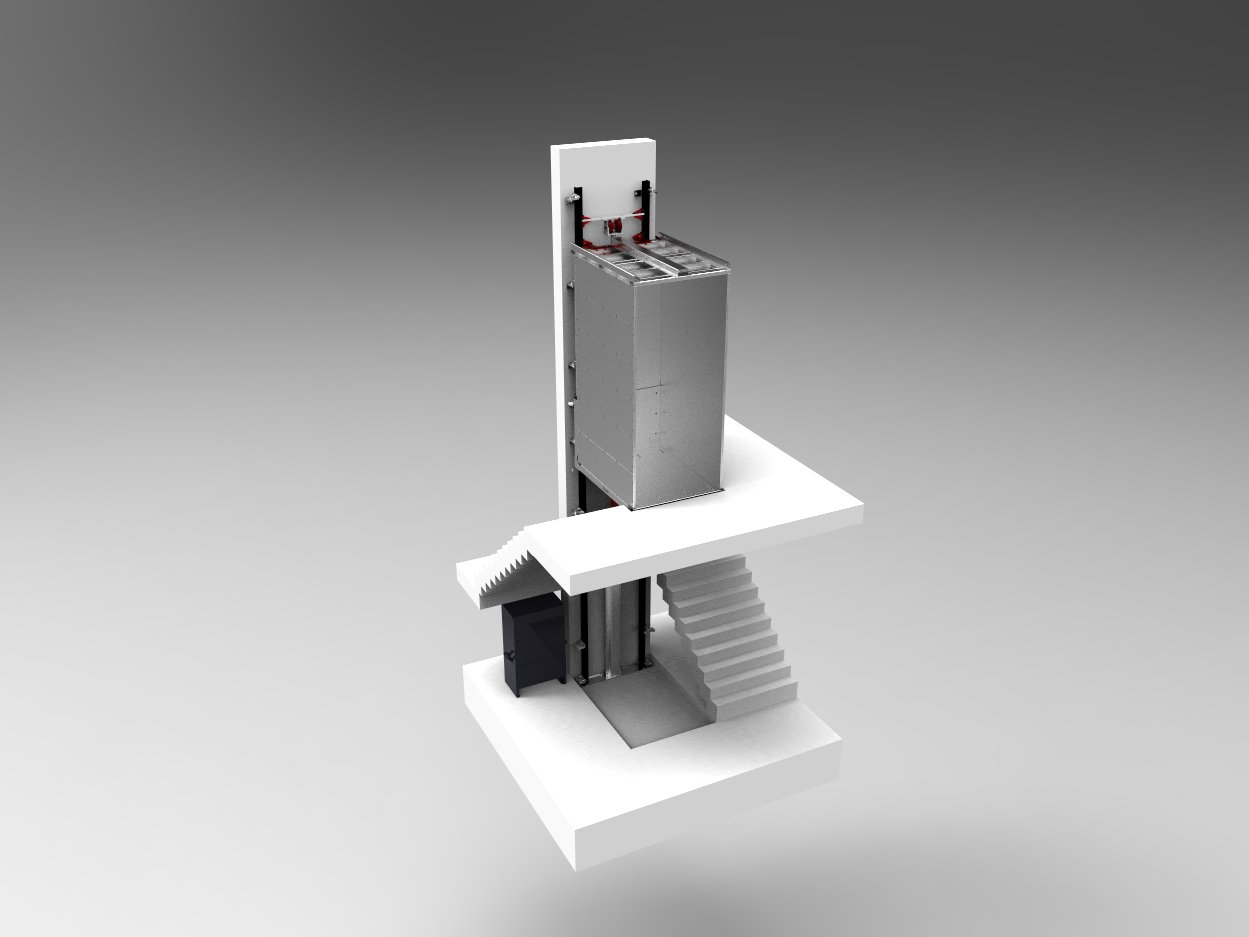

The lift's cabin is a fully enclosed steel construction. The cabin increases lift safety. Its disadvantage is the necessity of heeding the safety space or so-called "headroom" that is a minimum of 830 mm above the cabin. For the low-headroom cabin option, the headroom is reduced. You can check also the lift model PDS A.

Option Cabin Clear heigh CH Material/finish A guard at the entrance Add to cart
Cabin
${ errors['62425_62426'] }
${ errors['62425_62427'] }
${ errors['62425_62428'] }
Low headroom cabin
${ errors['62429_62430'] }
${ errors['62429_62431'] }
${ errors['62429_62432'] }

With the ramp, the lift can be installed directly on the finished floor. It is not necessary to dig a pit below the finished floor.

Option ramp Add to cart
Ramp

The self-supporting column replaces the concrete wall needed to anchor the lift's guide rails.

Option Add to cart
Self-supporting column

The PDS lift is for indoor installation. If you plan to install the lift outdoor, you need this option.

Options for IP IP class Add to cart
Better protection IP 54 for outdoor instalation
${ errors['62452_62453'] }
