As a hydraulic, goods-only lift with one cylinder, the TC is the low-price solution for lifting goods between floors. The TC is an industrial lift, and it is the core for the next level of TREZ products like TC 2C with two and TC 4C with four cylinders. The start configuration is a flat deck platform with a "hold to run" operation. The highest equipment level is a full close cargo cabin with industrial cargo doors for the floors and "push to go" operation. With a load capacity from 300kg to 1500 kg, the TC can be the working horse for every shop, storage, or warehouse. The TC is in compliance with the machinery directive 2006/42/EC. You can choose all the options below from the opions menu.

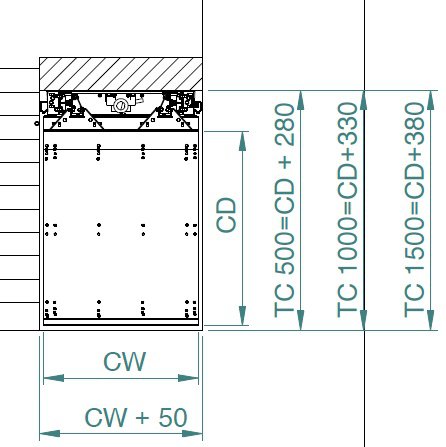

Legend: 1) Platform with useful width CW and depth CD. 2) Guide rails. 3) Control and power cabinet. 4) Reinforced concrete wall. 5) Pit or ramp

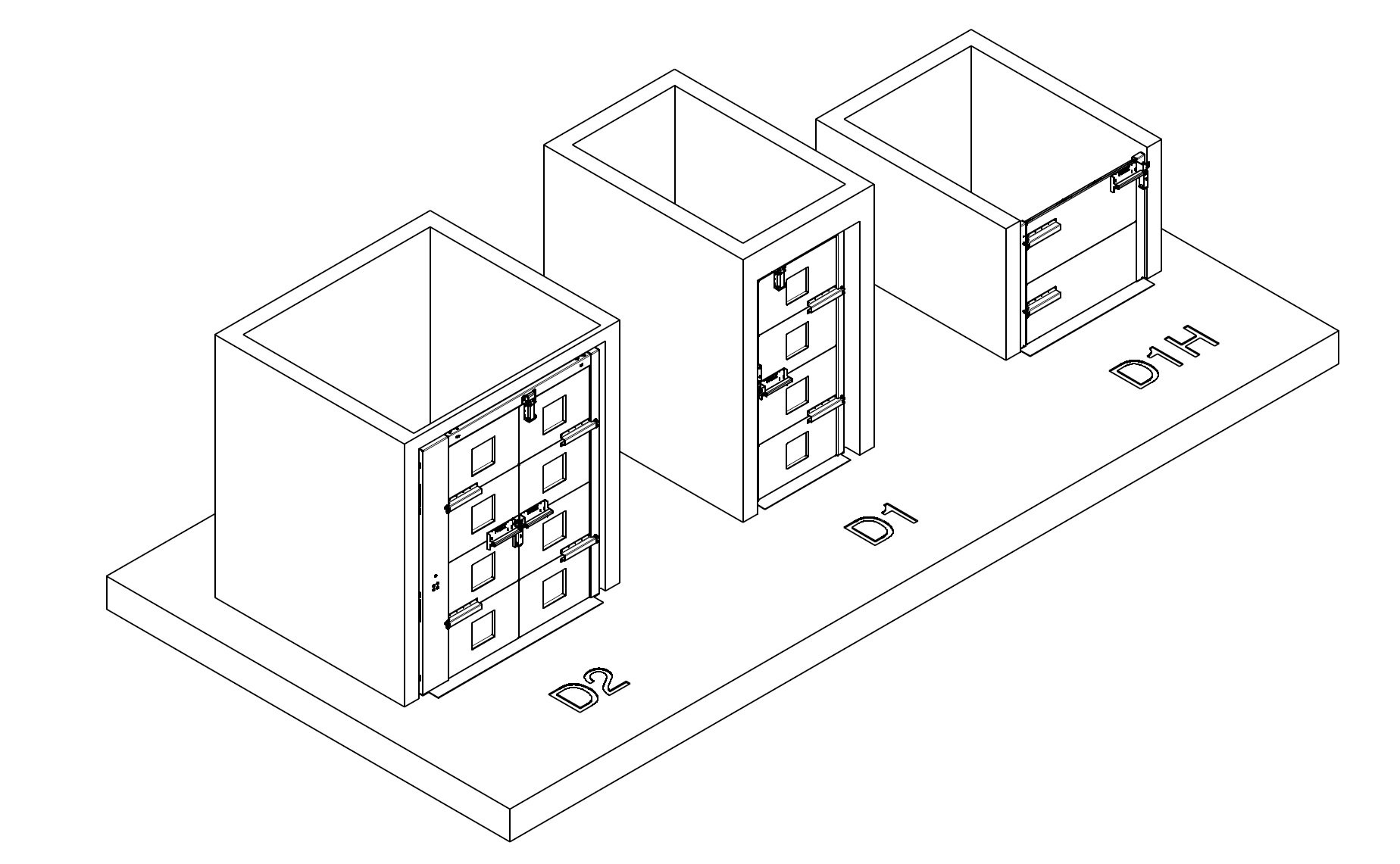

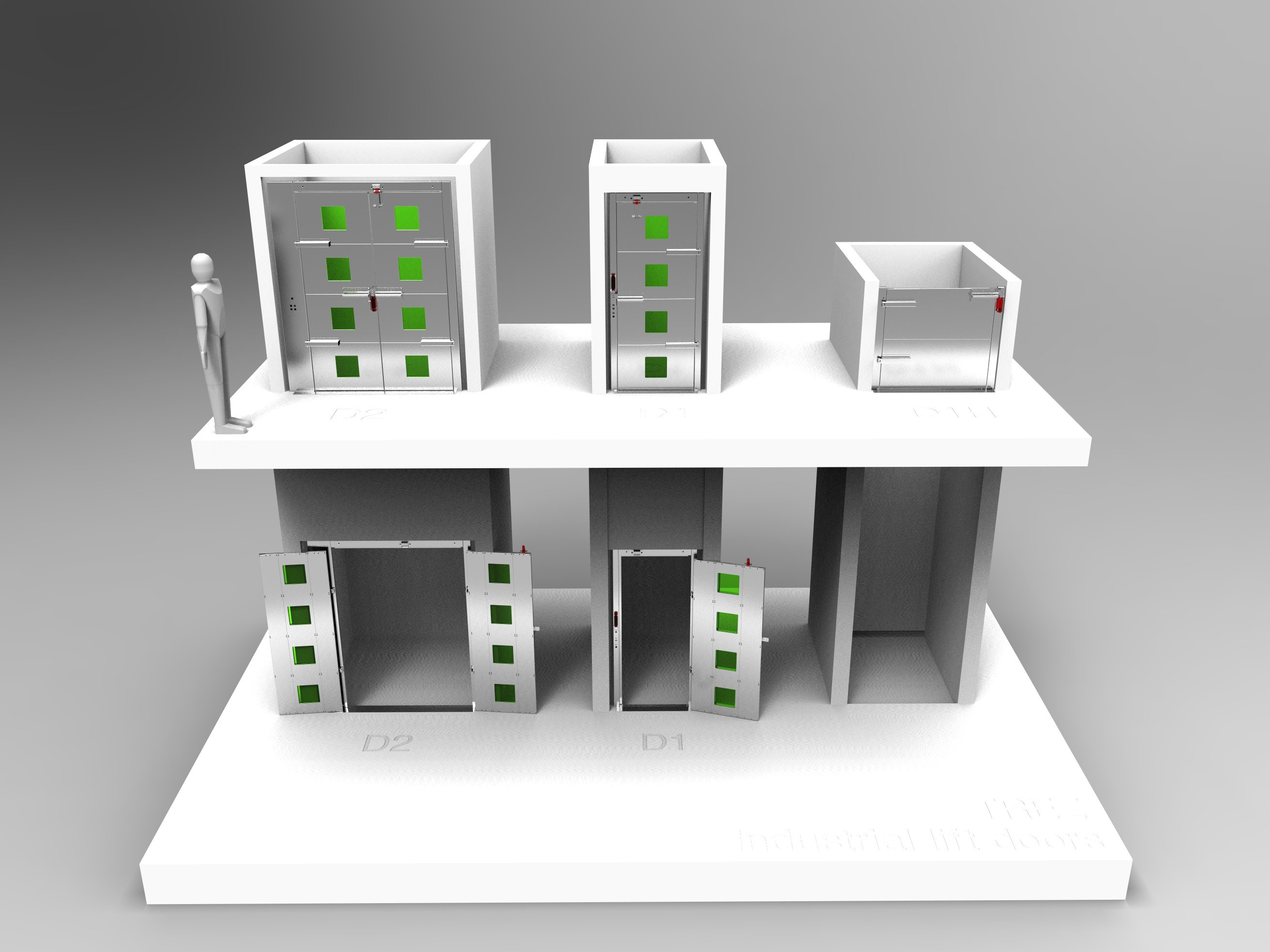

Models D1 and D2 (Door 1 side hinged or Door 2 side hinges) are industrial lift doors made via a new technology without welding which provides 4 observation windows. The locks and the hinges are outside the door for a 180-degree opening. The door complies with ЕN81-20 and EN 81-50. The door lock has a CE mark for safety regarding Lifts Directive 2014/33/EU or 2006/42/EC. The model D1H (Door 1 side hinged Half) is suitable for the installation on the last floor. The door model DFF (Door Fire Fight) is fireproof with protection class EI 60 or EI 120, according to EN 1634-1, EN 1363-1, and EN13501-2.

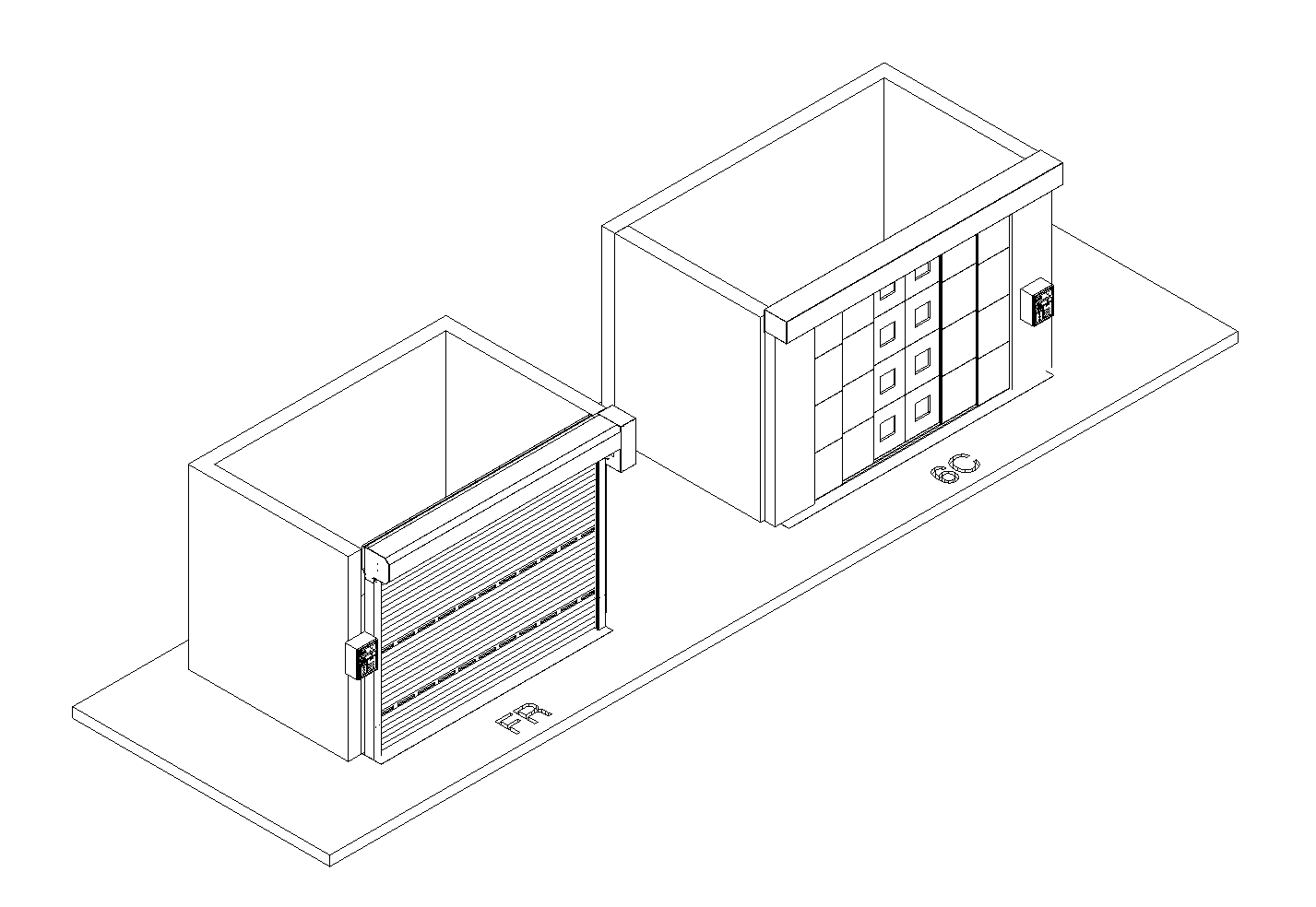

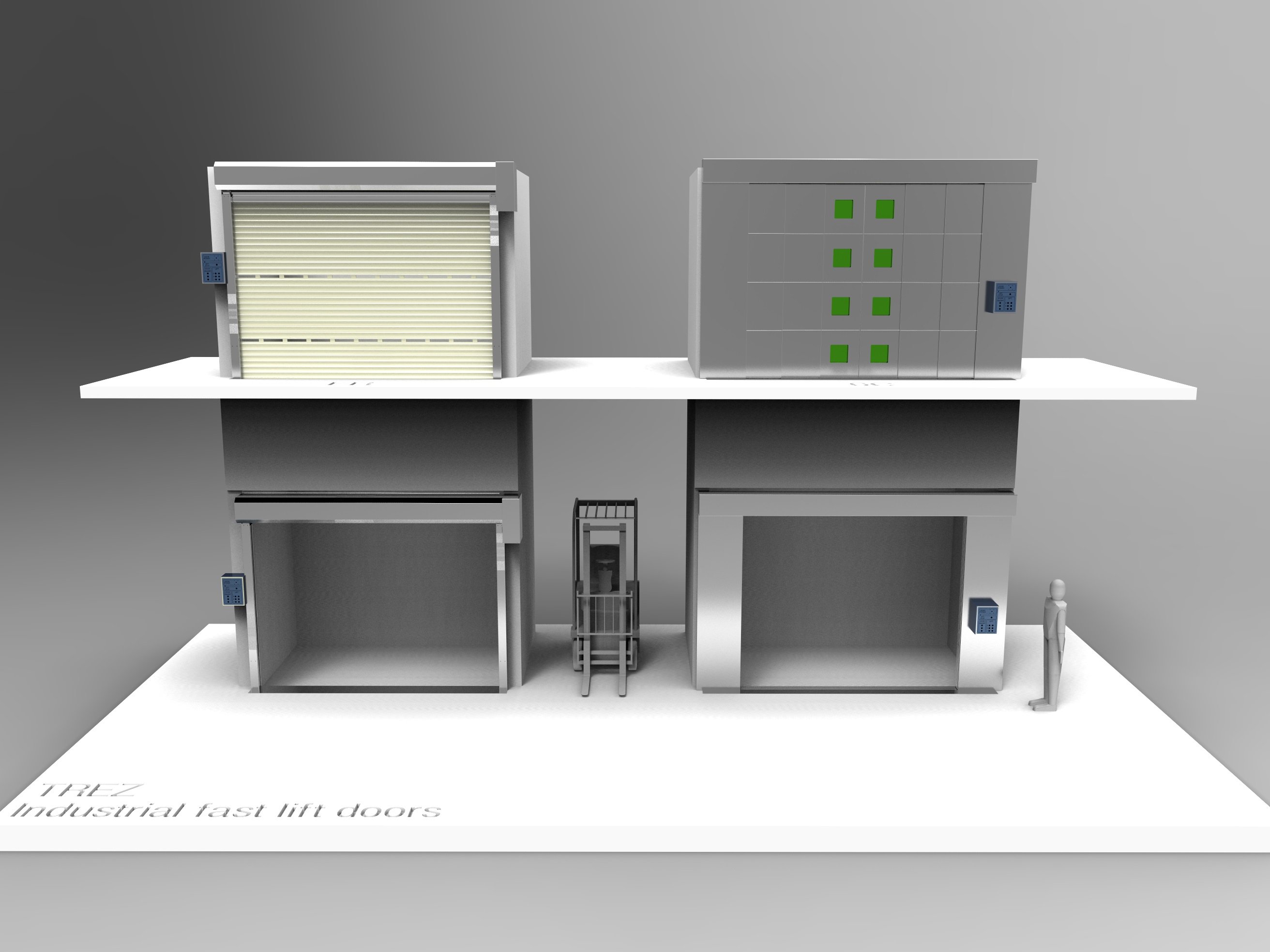

The door model FR (Fast Rolling) is a fast industrial rolling door with 2 lines of transparent labels for observations. It complies with 2006/42/EC. The door model 6C is a central opening sliding door in compliance with ЕN81-20 and EN 81-50. The model 4C FF is a fireproof, automatic sliding door in compliance with EN81-58, class E120, EW60, IE30 and IE120.
The platform has one protection on the side of the guide rails. The rest three sides are free for loading or railing.
The lift's cabin is a fully enclosed steel construction.It is made from galvanized metal with no welding. For the cabin, the maximum useful platform dimensions can be increased to 1500 x 2400 mm. The cabin is a perfect solution for high and light goods, increasing lift safety and cancelling out the "guillotine effect". Its disadvantage is the necessity of heeding the safety space or so-called "headroom" which is a minimum of 830 mm above the cabin.
With the ramp, the lift can be installed directly on the floor. It is not necessary to dig a pit below the floor. It is advisable to use an electric pallet truck to load the lift. Despite the small incline of roughly three degrees, manually pushing a load heavier than 500 kg on a ramp is a challenge.
The self-supporting column replaces the concrete wall needed to anchor the lift's guide rails.
Movable barrier

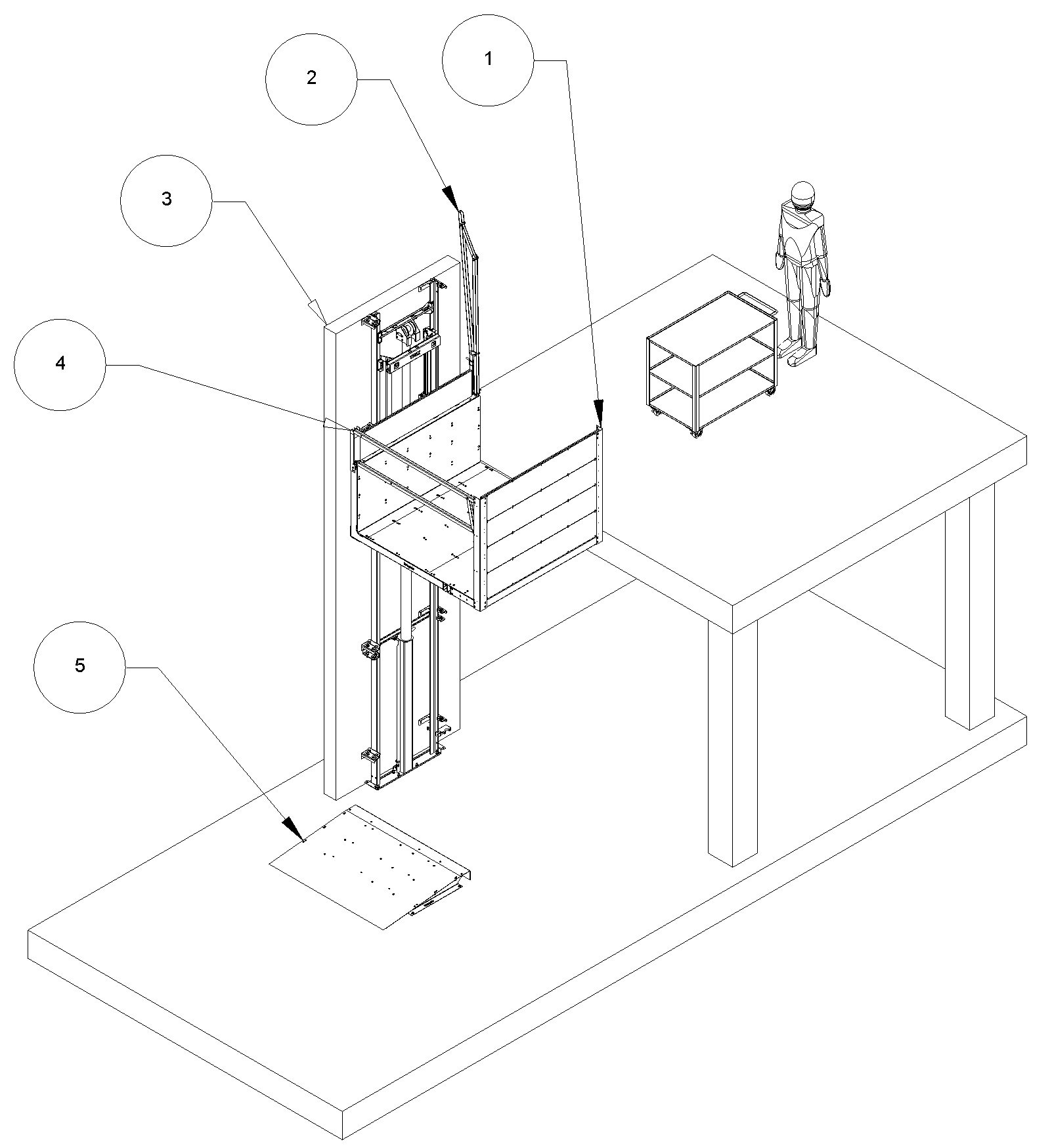

The movable barrier is best for using carts which load won't be unloaded. Legend: 1) Railing (Balustrade). 2) An open movable barrier. 3) Concrete wall for the guide rails or a self-supporting column. 4) Closed movable barrier . 5) Ramp instead of a pit.

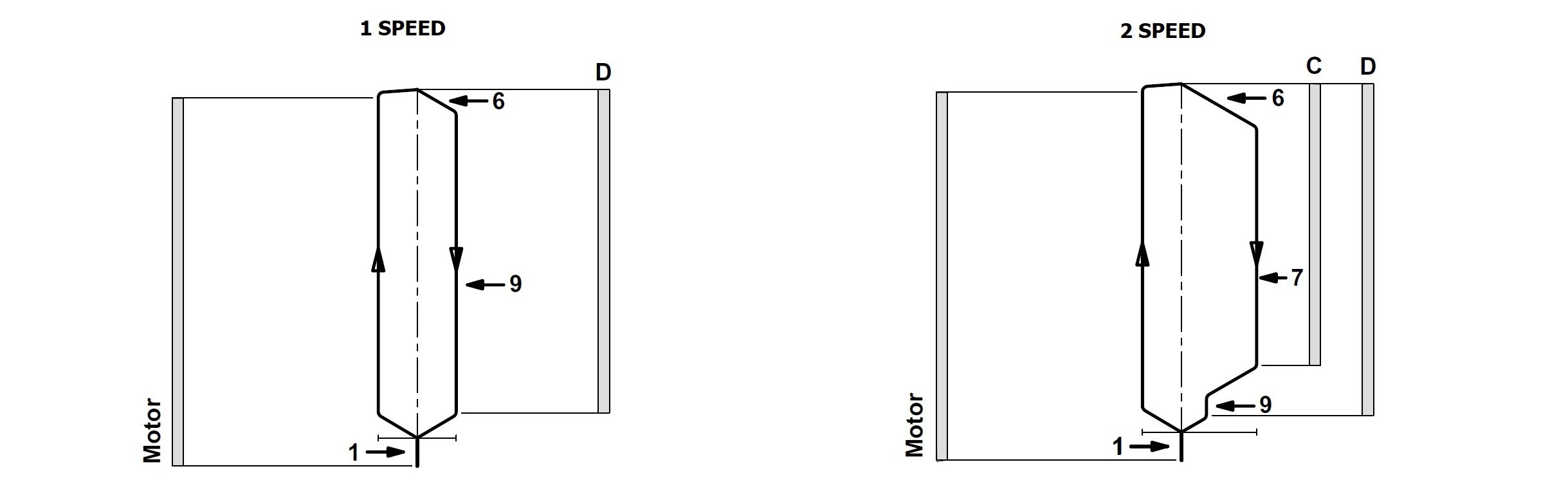

Standart TC lifts are manufactured with 1 speed gear. The lifting force comes from the pressure in the hydraulic pump via a hydraulic cylinder. The descent is caused by gravity and it is controlled by an electrical valve. 1 speed gear lifts has +- 7 mm accuracy of stopping before the ground level. With the creeping speed option, the accuracy of stopping can be increased to +- 3 mm. The descending speed is also increased. Standart TC 1500 is manufactured with creeping speed. This option is recomendable for TC 1000 and TC 500.
IP 53 is the standard protection class for the TC industrial lifts. The power stations standart protection class is IP 43. For a higher class of protection you would need to order additional equipment allowing outdoor installation, work in an aggressive or explosive environment ATEX. The equipment includes chromating of the piston, suitable sensors for the floors, suitable control buttons, additional hydraulics and control protection.
